Automotive Windshields & Windows
Localised design & manufacturing
Explore
...at its best
...extreme climatic condition
Displays for Harsh Enviornment
is the need of the hour
Product Groups

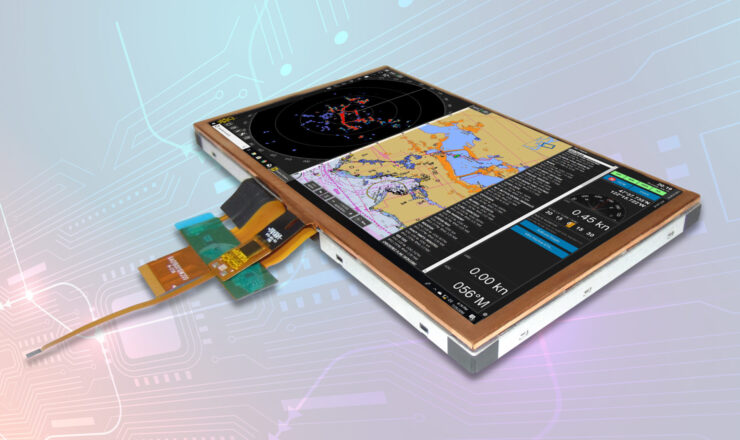

TFT-LCD Modules
Wide Variety of TFT-LCD Modules engineered with utmost in-house design capabilities that offer standard and customized features.
read more
Resized Displays
Standard Displays cut to non-standard sizes to match various industry needs and specifications. The magic of cutting displays almost all shapes & sizes are achievable
read more

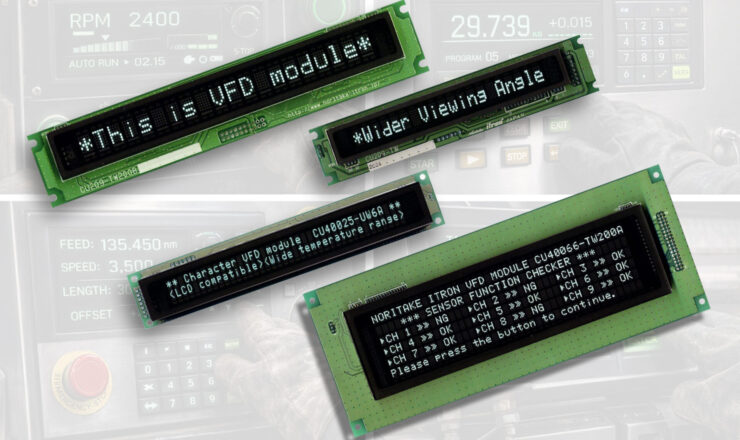

Vacuum Fluorescent Displays (VFD)
Available to display Character & Graphical images, this display is based on principles of cathode-luminescence
read more
Display Controllers
Controllers to driver all kinds of displays with even the most complex signals and interfaces.
read more
Complete Imaging solutions for Surgical application
Highness offers imaging product such as Medical grade Surgical Monitors that integrates well with all surgical cameras.
⊕ Small-sized Cost-Effective Monitors for ENT, Urology, Bronchoscopy etc.
⊕ 21″, 24″, 27″ Surgical Monitor for Laparoscopy, Gastroscopy, Endoscopy & more.
⊕ 32″, 42″, 55″ sizes for Digital OR, Study & Consultation
⊕ Crisp & Superior Imaging experience with 4K Monitors in 27″, 32″, 43″ & 55″
⊕ Highness’ flagship Surgical Monitors with BUILT-IN RECORDER that supports single or dual camera inputs simultaneously. It DISPLAYS, RECORDS & LOOP-OUT for slave/passive monitor…all at the same time.
⊕ Wall-Flushed Touch-Screen integrated Open-Frame Monitors for Digital OR offers CONNECTIVITY, NAVIGATION, RECORDING & CONTROL features
Energy-Efficient & Smart-Displays on the move
Whether Trains & Metros or Electronic Vehicles (EV), Highness’ Smart-Displays are not only energy efficient but also rugged for use in train coaches as well as driver cabins in locomotives
⊗ Approved & Technically Qualified Displays for Passenger Information Systems (PIS / PAPIS) & Micro-controller Switch Board Cabinets (MSSBC)
⊗ Stretched & Bar type Displays for Dynamic Route Maps (DRM)
⊗ Gate Displays for Automatic Fare Collection (AFC)
⊗ Display Controllers with Data streaming options on secured Ethernet or Wi-Fi Network, supporting Real Time Steaming Protocol (RTSP) or other similar communication options
⊗ Energy Efficient Displays for Electronic Vehicles (EV)
⊗ Transparent Electroluminescent Displays (TASEL) for Automotive Windshields

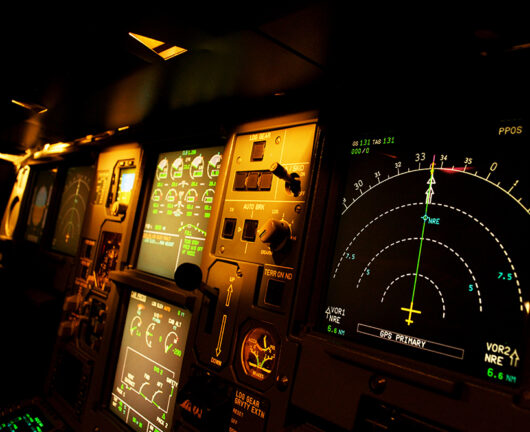

Customised Displays that are Airworthy
⊗ Customized Displays with Ruggedized Features such as High-Brightness for visibility under direct sunlight, NVIS for Night-Vision, operation at High Altitude, Wide-Operating Temp. of -40 to +80 degrees C, EMI-EMC shielded and Conformally Coated for Avionics in Cockpit application. Turnkey solution & product design and development based on customized requirement specifications.
⊗ Specially designed backlights to enhance brightness features for Day & Night Mode.
Industrial grade Displays that facilitate Factory Automation
⊗ Industrial Touch Screen Monitors for Navigational Controls & HMIs
⊗ Mechanized Touch Screens for Oily & Gloved fingers
⊗ Panel-Mount, Open-Frame & Displays with Industrial grade enclosures
⊗ High-Brightness for Outdoor usage
⊗ Wide Operating Temperature up to +80oC
⊗ Retrofit Displays that replaces old CRTs & integrates well with old legacy systems & age-old signal/interfaces such as CGA, EGA etc
Ruggedized Displays for Challenging Environmental conditions
Our ruggedization technique enables commercial & standard displays to adapt to extreme climatic conditions. These displays withstand harsh environment offering-
⊗ Ultra-High Brightness for Sunlight & Outdoor visibility
⊗ Up to 9H Surface Hardness
⊗ Wide Operating Temperature from -40 to +80o C
⊗ Anti-Glare, Anti-Reflective & Anti-Smudge surface treatment
⊗ Optically-Bonded surface glass or touch screen
⊗ Shielding against Electromagnetic Interference
⊗ Night Vision / NVIS compatibility
Large-sized Video-walls & Multi-Format Monitors for broadcasting
Large size Video-wall displays for indoor / outdoor application-
⊗ 46” or 55” TFT-LCD Modules arranged in 2×2, 3×3, 4×4, 5×5
or other similar arrangements
⊗ 3.9 mm combined bezel-gap (1.9 mm individual bezel-gap)
⊗ Daisy-Chain display sequence
⊗ High Brightness for Sunlight & Outdoor visibility
⊗ Optional Multi-point touch screen for interactivity
⊗ PIP Function
Multi-Format supported Broadcasting Monitors
⊗ Multi-Format Analogue / Digital Signal support
⊗ HDMI input (HDCP Decryption)
⊗ Accurate Color Reproduction
⊗ Color Calibration
⊗ Built-in Waveform & Vectorscope

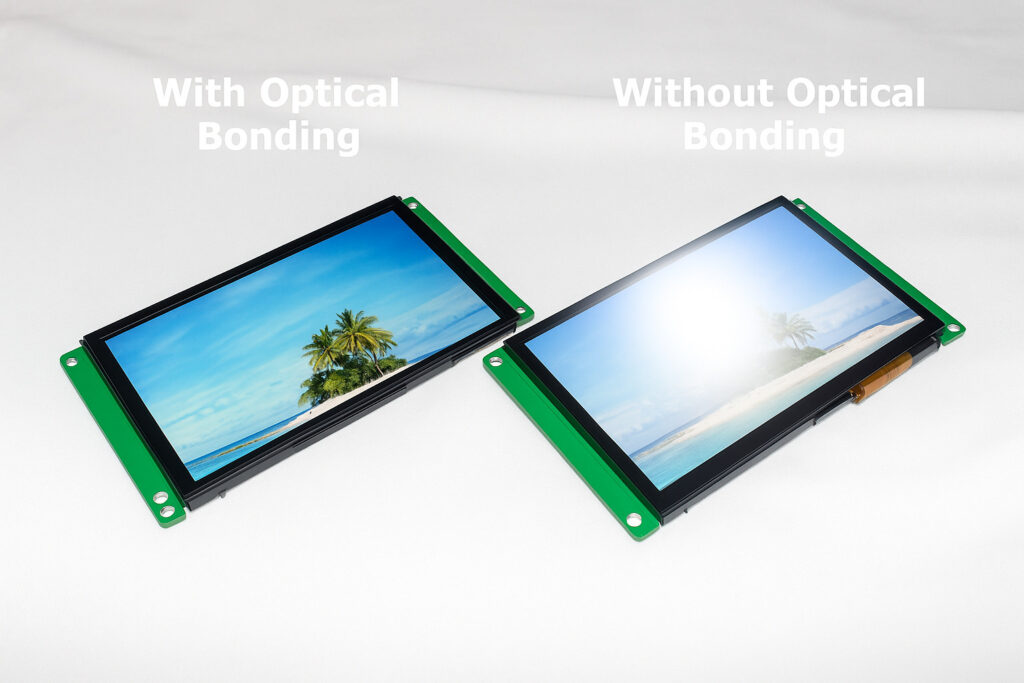

Optical Bonding

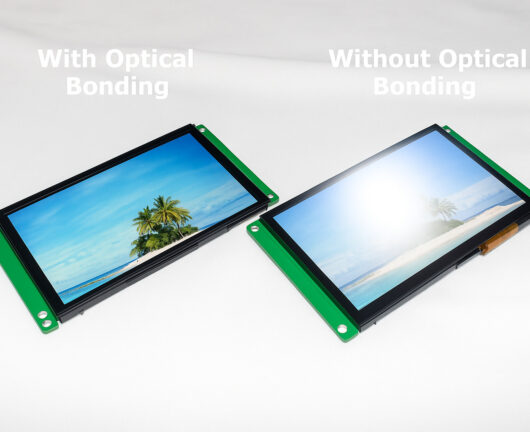

Optical Bonding is a process of bonding two surfaces to achieve better optical characteristics. This process reduces light reflection and make displays sunlight readable for outdoor visibility. The bonding can be done between following surfaces-
Glass + Glass
Glass + Film
Polycarbonate + Glass
Polycarbonate + Polycarbonate
It is possible to Optically Bond two surfaces using dry-bonding method using Optically Clear Adhesive (OCA) sheets or wet-bonding using Liquid Optically Clear Adhesive (LOCA).
HighnessMicro has engineering capabilities to undertake Optical-Bonding of Displays. These optically-bonded displays have successfully been deployed in applications such as Railways, Medical & Outdoor Media.
Night Vision Imaging System (NVIS)
NVIS enable visibility in dark or extremely low ambient light conditions.
With specially designed backlights, displays feature dual-mode: Day & Night with an option to toggle between the two.
Displays with NVIS feature is critical for Surveillance & Defence application.
HighnessMicro has designed displays with NVIS compatibility for use in Airborne application for Aerospace as well as ground application for Military.

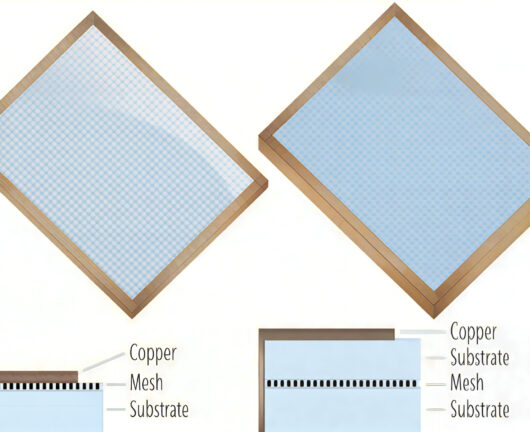

EMI Shielding

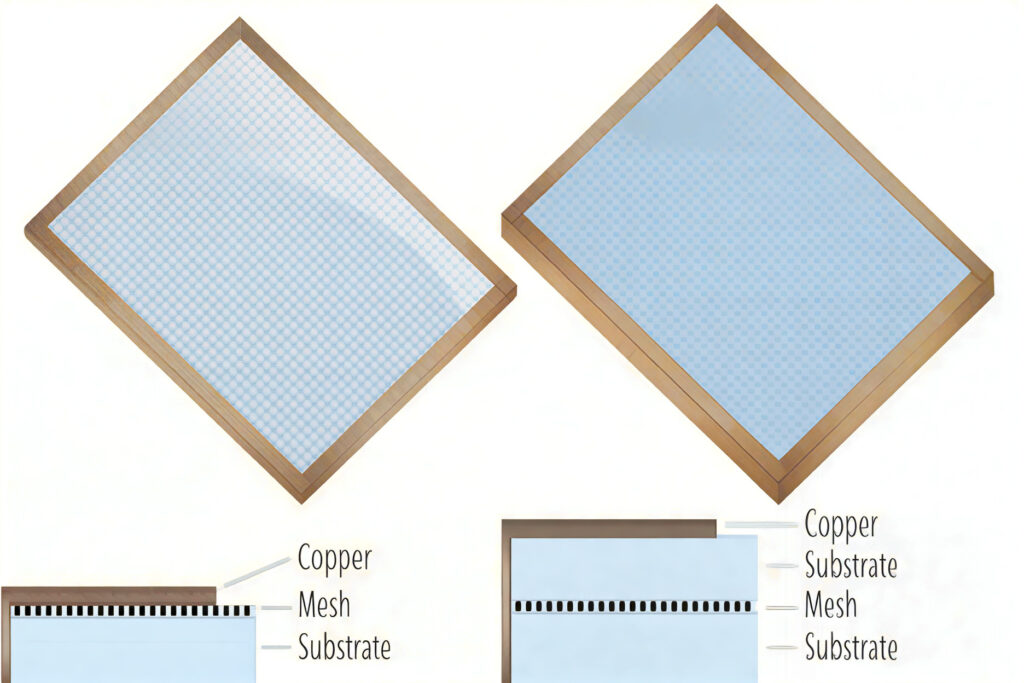

Optical Fine-wire Mesh for shielding against Electro-Magnetic Interference (EMI) and Radio Frequency Interference (RFI)
These EMI-Mesh can be applied between surface layers in form of films or they can be optically-bonded along with front glass or touch screens.
Copper-tapped busbars on the edges allow termination for better shielding.
Attenuation starting 30dB, 45dB and 60dB are achievable by applying these EMI-Mesh which allows displays to be used in Defence & Medical application.
