Displays for Dynamic Route Map (DRM)

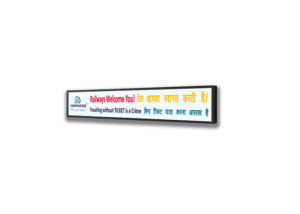

Size: 16.3″
Resolution: 1920 x 285
Aspect Ratio: 16:2.4
Brightness: 800 nits
Active Area: 408.96 x 60.71 mm
Outline Dimm.: 439 x 91 mm

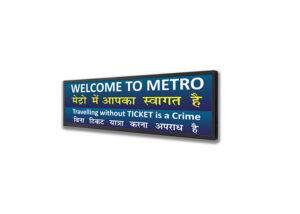

Size: 24″
Resolution: 1920×360
Aspect Ratio: 16:3
Brightness: 300 nits
Active Area: 597.8 x 112.1 mm
Outline Dimm.: 612.7 x 132.1 x 8.4 mm

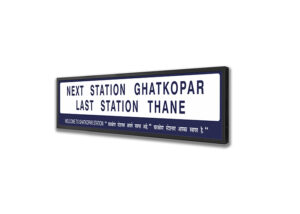

Size: 28″
Resolution: 1920 x 360
Aspect Ratio: 16:3
Brightness: 1000 nits
Active Area: 698.4 x 130.95 mm
Outline Dimm.: 729 x 161 mm

Size: 29″
Resolution: 1920 x 540
Aspect Ratio: 16:3
Brightness: 700 nits
Active Area: 698.4 x 221.85 mm
Outline Dimm.: 726.58 x 252.84 mm

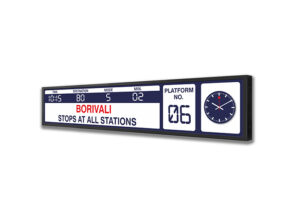

Size: 36.6″
Resolution: 1920 x 290
Aspect Ratio: 16:3
Brightness: 700 nits
Active Area: 919.296 x 138.852 mm
Outline Dimm.: 960 x 174.35 x 16.9 mm

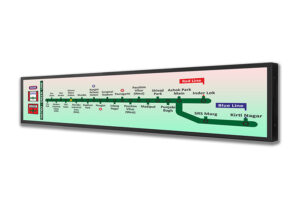

Size: 48″
Resolution: 1920 x 317
Aspect Ratio: 16:2.6
Brightness: 500 nits
Active Area: 1209.6 x 200 mm
Outline Dimm.: 1238.5 x 232.5 mm

Size: 48.3″
Resolution: 1920 x 320
Aspect Ratio: 16:2.6
Brightness: 700 nits
Active Area: 1209.6 x 201.6 mm
Outline Dimm.: 1240 x 232 mm

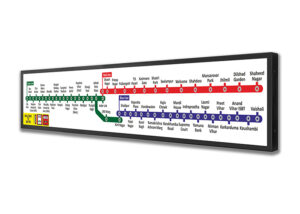

Size: 48.5″
Resolution: 3840 x 720
Aspect Ratio: 16:3
Brightness: 1000 nits
Active Area: 1209.6 x 226 mm
Outline Dimm.: 1239.6 x 256.8 mm

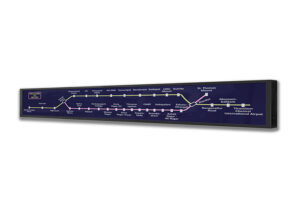

Size: 48.7″
Resolution: 1920 x 320
Aspect Ratio: 16:1.48
Brightness: 700 nits
Active Area: 1209.6 x 112 mm
Outline Dimm.: 1245 x 147 mm

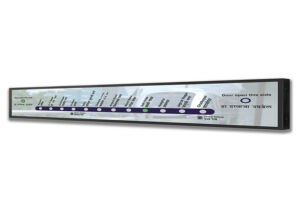

Size: 56.5″
Resolution: 3840 x 349
Brightness: 600 nits
Active Area: 1428.48 x 130 mm
Outline Dimm.: 1500 x 160 x 22.5 mm
