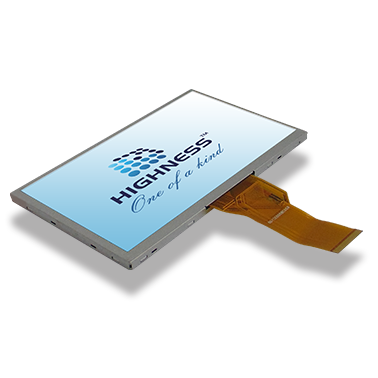

HM070WS101I

Item

Specifications

Screen Size

7.0″ diagonal

Active Area

154.2144(W) x 85.92(H) mm

Outline Dim

164.9(W) x 100(H) x 4.8(D)

Resolution

1024 x 600

Pixel Pitch

0.1506(W) × 0.1432(H) mm

Luminance

500 cd/m²

Contrast ratio

800 typical

Viewing Angle

75˚, 75˚, 70˚, 75˚

Number of Color

16.7M Colors (RGB-stripe)

Interface

LVDS

Response Time

30 ms

Operating Temperature

-20^o to 70^o C

Storage Temperature

-30^o to +80^o C

Backlight Life

20,000 hours

Datasheet

HM070WS101I
