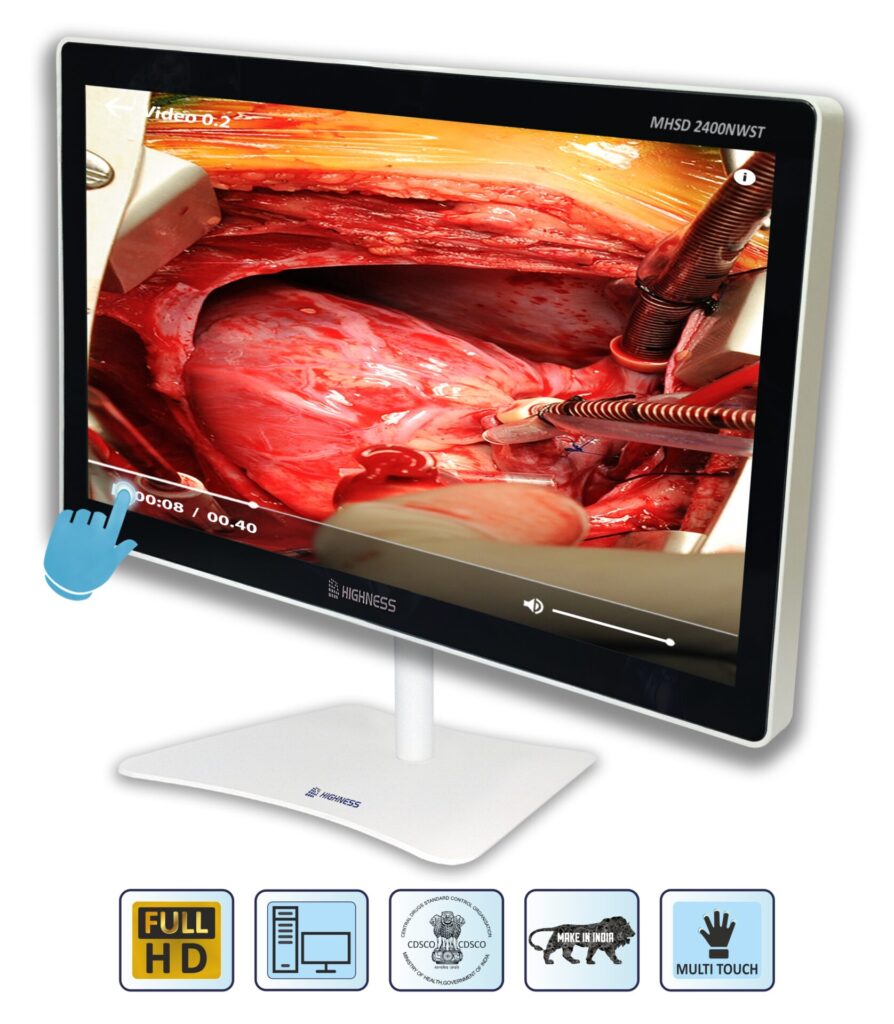

23.8" Built-In Workstation
MHSD-2400NWST
|
Screen Size |
23.8″ diagonal |
|
|
Active Area (H x V) |
527.04 x 296.46 mm |
|
|
Resolution |
1920 x 1080 |
|
|
Aspect Ratio |
16:9 |
|
|
Pixel Pitch (H x V) |
0.2745 x 0.2745 mm |
|
|
Color |
16.7Million |
|
|
Viewing Angle |
89o/89o/89o/89o |
|
|
Luminance |
500 cd/m2 |
|
|
Contrast |
1000:1 |
|
|
Response Time |
14ms |
|
|
Operating Temperature |
0o to +50o C |
|
|
Storage Temperature |
-20o to +60o C |
|
|
Output Signals |
HDMI/ VGA |
|
|
In-Built System |
Intel® Core™ i7 |
|
|

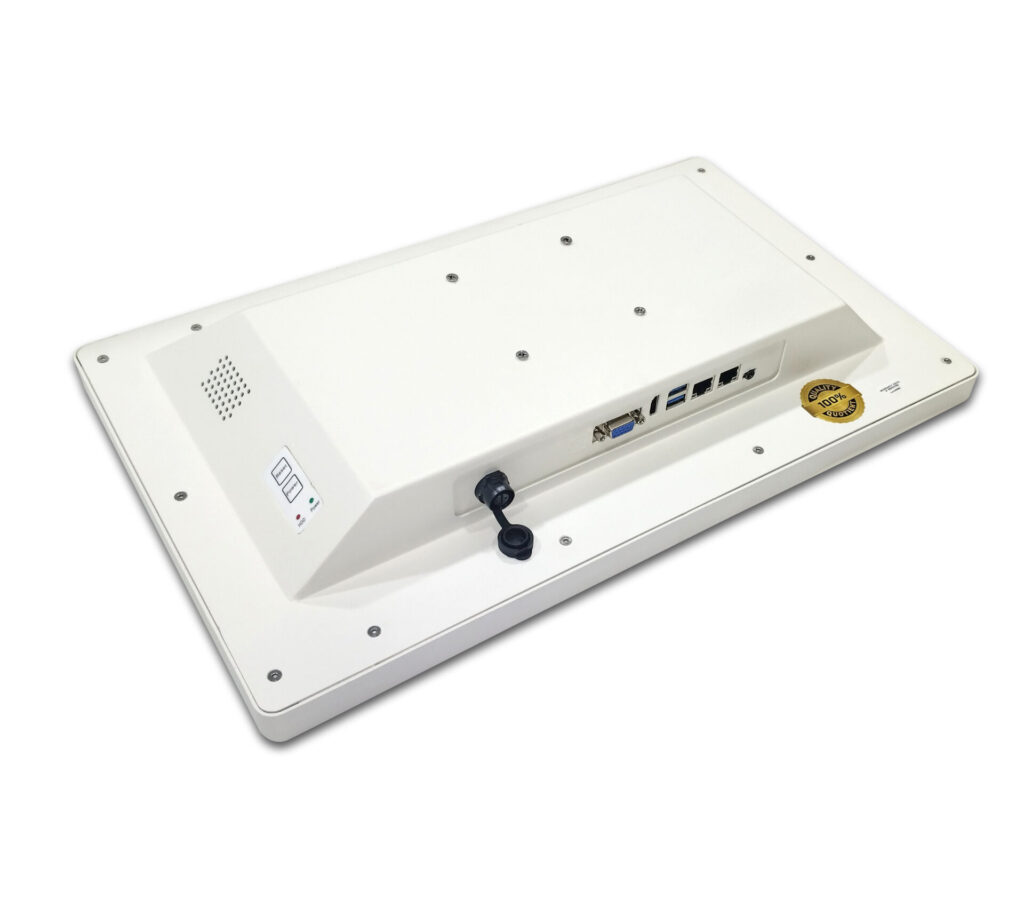

I/O Port |
USB |
USB2.0, USB3.0 |
|
COM Port |
RS232/RS422/RS485 (Optional) |
|
|
GPIO |
Connector 10 Pin (Optional) |
|
|
Network |
10/100/1000M Ethernet Controller |
|
|
Other Features- Wi-Fi, Bluetooth (Optional) Output Signal for Connecting to Slave/Passive Monitor |
||
|
Touch Screen Type |
10 Point Multipoint Touch Capacitive |
|
|
Operating System |
Windows 10 (Pre-Installed) |
|
|
Power Input |
DC 12V (5A) |
|
|
Power Consumption |
44W |
|
|
Backlight Type |
LED |
|
|
Backlight Life |
30,000 hours |
|
|
Enclosure |
Mild Steel / Aluminum |
|
|
Weight |
13.800 Kgs. |
|
|

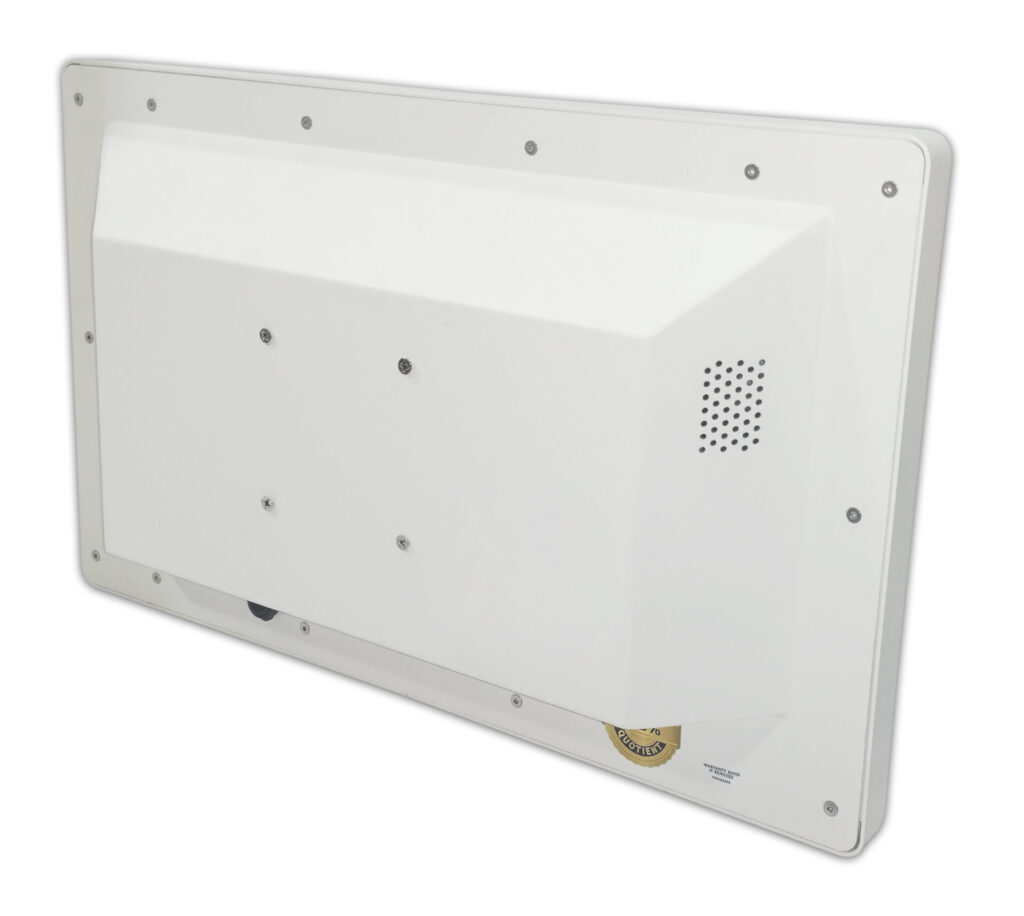

Mounting |
VESA (100 mm) |
|
