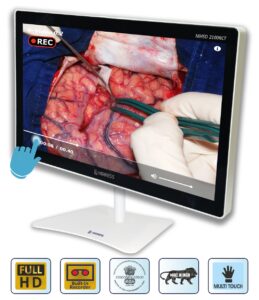

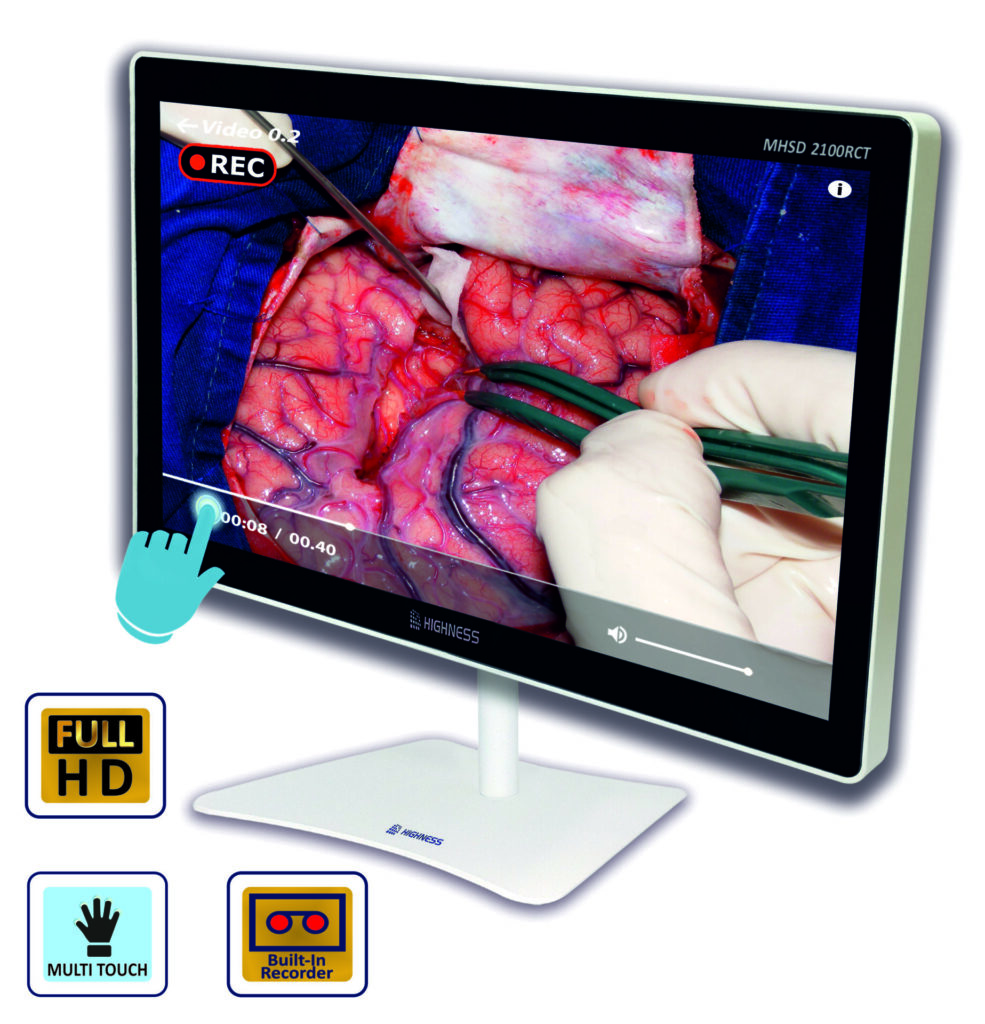

21" Built-In Recorder MHSD-2100RCT
|
Screen Technology |
TFT AM LCD |
|
Active Screen Size (Diagonal) |
21.5“ |
|
Active Screen Size (H x V) |
476.064 x 267.786 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920 x 1080 |
|
Pixel Pitch |
0.24795 mm |
|
Viewing Angle (H, V) |
178°, 178° |
|
Maximum Luminance |
350 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Color |
16.7 Million |
|
Response Time (Tr + Tf ) |
20 ms |
|
Video Inputs Signals |
HDMI |
|
Interface Port |
HDMI |
|
Video Outputs Signals |
HDMI/ VGA |
|
Recording System |
In-Built, Fully Integrated with Monitor 1TB Storage (Expandable to 2TB) Simultaneous Recording & Video Display |
|
Other Features – Recording Start & Pause Button Screenshot Button USB for Copying Recorded Videos Ethernet for Connectivity with Hospital / Clinic |
|
|
Optional Features – Wi-Fi, Bluetooth (Optional) Output Signal for Connecting to Slave / Passive |
|
|
Built in Operating System |
Windows 10 (Pre-installed), Recording |
|
Touch Screen Type |
Multi-Point Projected Touch Screen |
|
Power Requirements |
DC 12V (5A) |
|
Power Consumption |
TBA |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (Non-Condensing) |
|
Backlight Life |
30,000 hours |
|
Housing Color |
White |
|
Housing Material |
Metal |
|
Weight |
8.9 Kgs |
|
Mounting Standard |
VESA (100 mm) |
