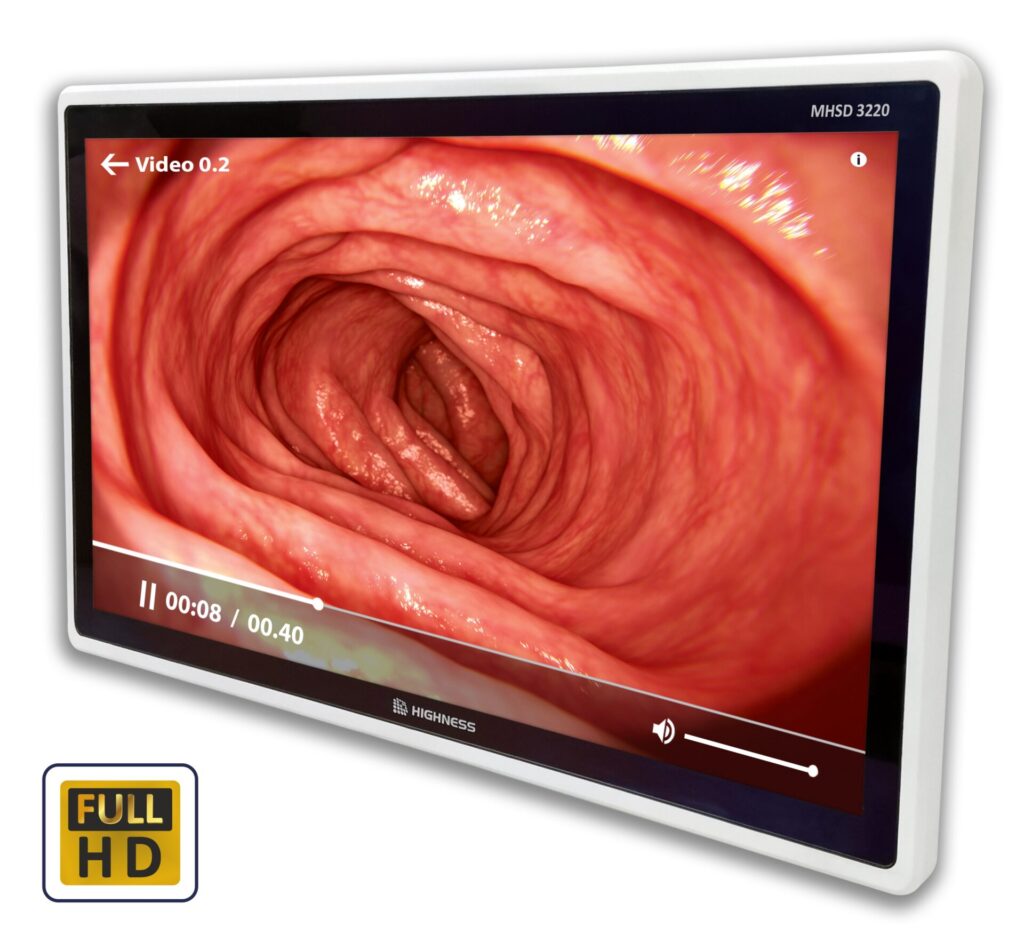

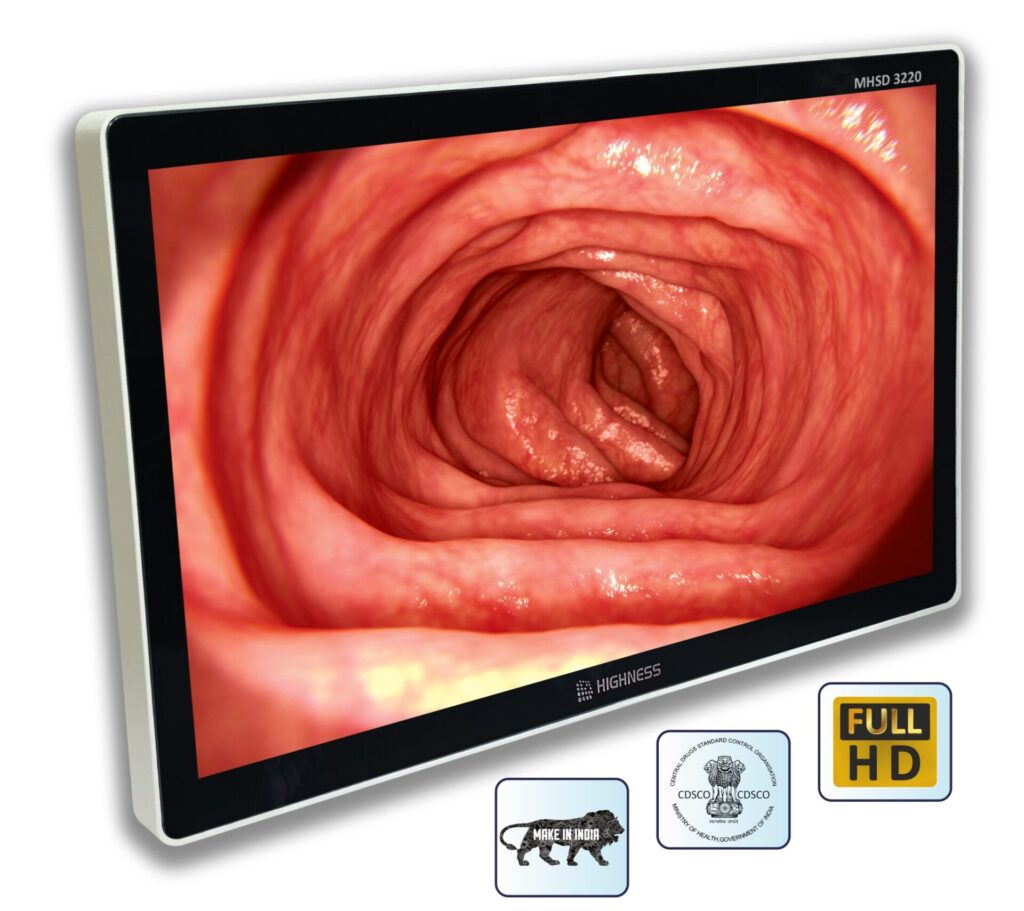

MHSD-3220
|
Active Screen Size (Diagonal) |
32″ |
|
Active Screen Size (H x V) |
698.4 (H) x 392.85 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920 x 1080 |
|
Pixel Pitch |
121.25 x 363.75 µm |
|
Viewing Angle (H,V) |
178°, 178° |
|
Maximum Luminance |
400 cd/m² |
|
Contrast Ratio |
1200:1 |
|
Color |
16.7 Million |
|
Response Time (Tr + Tf ) |
10 ms |
|
Video Inputs Signals |
2x 3G-SDI, HDMI, DVI, VGS & CVBS |
|
Video Outputs Signals |
3G-SDI |
|
Power Requirements (Nominal) |
DC 24V (6.67A) |
|
Power Consumption (Nominal) |
160W |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (Non-Condensing) |
|
Housing Color |
White |
|
Housing Material |
Metal |
|
Mounting Standard |
Wall Mount & VESA (200 mm) Optional |
