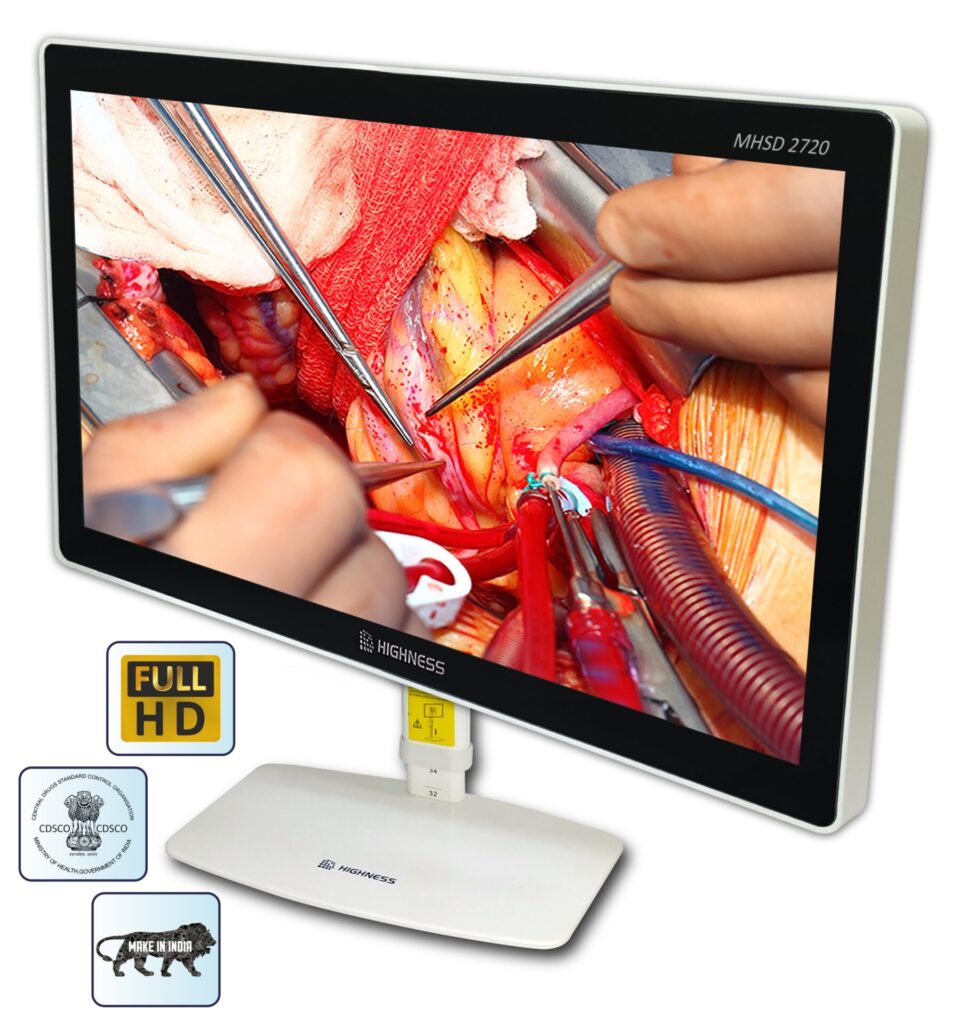

MHSD-2720
|
Screen Technology |
TFT AM LCD |
|
Active Screen Size (Diagonal) |
27″ |
|
Active Screen Size (H x V) |
597.888 x 336.312 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920 x 1080 |
|
Pixel Pitch (H x V) |
0.3114 x 0.3114 mm |
|
Viewing Angle (H, V) |
178°, 178° |
|
Maximum Luminance |
300 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Color |
16.7 Million |
|
Response Time (Tr + Tf ) |
20 ms |
|
Video Inputs Signals |
2x 3G-SDI, HDMI, DVI, VGA & CVBS |
|
Interface Port |
Digital: – BNC, DVI & HDMI Analog: – 15 Pin D-Sub, RCA |
|
Video Outputs Signals |
3G-SDI |
|
Other Mode |
– |
|
Power Requirements |
DC 24V (6.67A) |
|
Power Consumption |
160W Max |
|
Power Saving |
EPA, VESA Standard |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (Non-Condensing) |
|
Housing Color |
White |
|
Housing Material |
Metal |
|
Mounting Standard |
VESA (100 mm) |
