mhsd2412n

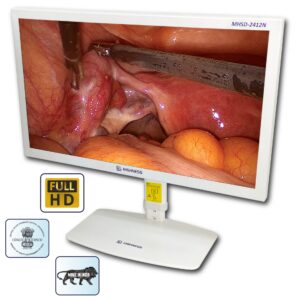

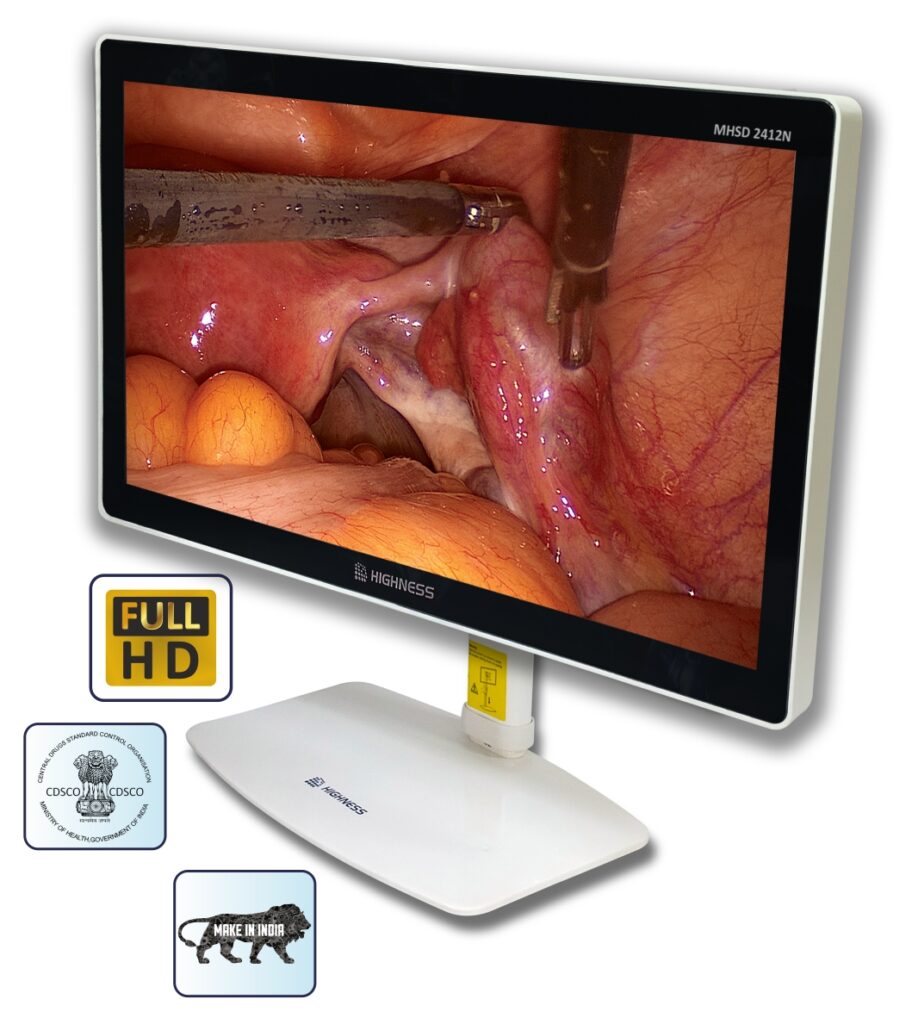

MHSD-2412N

Screen Technology

TFT AM LCD

Active Screen Size (Diagonal)

24

Active Screen Size (H x V)

527.04 x 296.46 mm

Aspect Ratio

16:9

Resolution

1920 x 1080

Pixel Pitch (H x V)

274.5 x 274.5 µm

Viewing Angle (H, V)

178°, 178°

Maximum Luminance

400 cd/m²

Contrast Ratio

1000:1

Color

16.7 Million

Response Time (Tr + Tf )

14 ms

Video Inputs Signals

Digital: ‐ HDMI Standard, DVI

Analog: – VGA

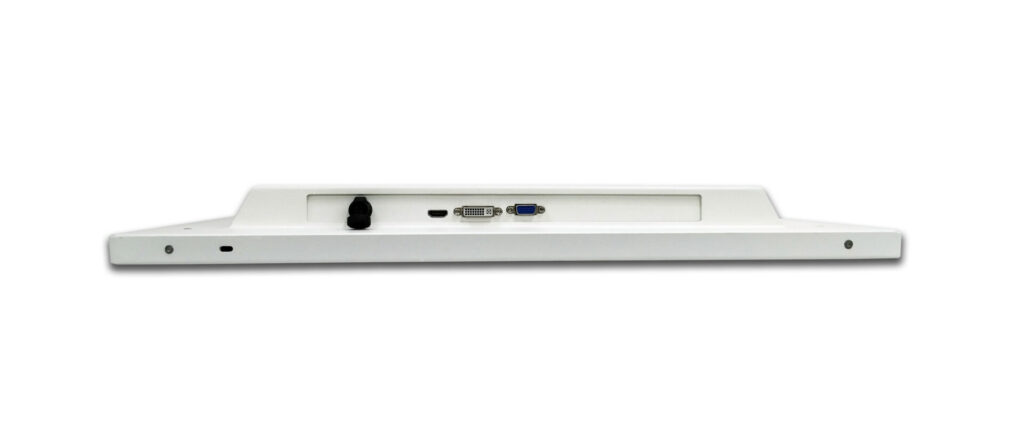

Interface Port

Digital: – HDMI Port, DVI

Analog: – 15 Pin D-Sub

Power Requirements

AC 240V

Power Consumption

70W Max

Power Saving

EPA, VESA Standard

Operating Temperature

0 to +50°C

Storage Temperature

-20 to +60°C

Relative Humidity

10% to 90% (Non Condensing)

Housing Color

White

Housing Material

Metal

Mounting Standard

VESA (100 mm)
