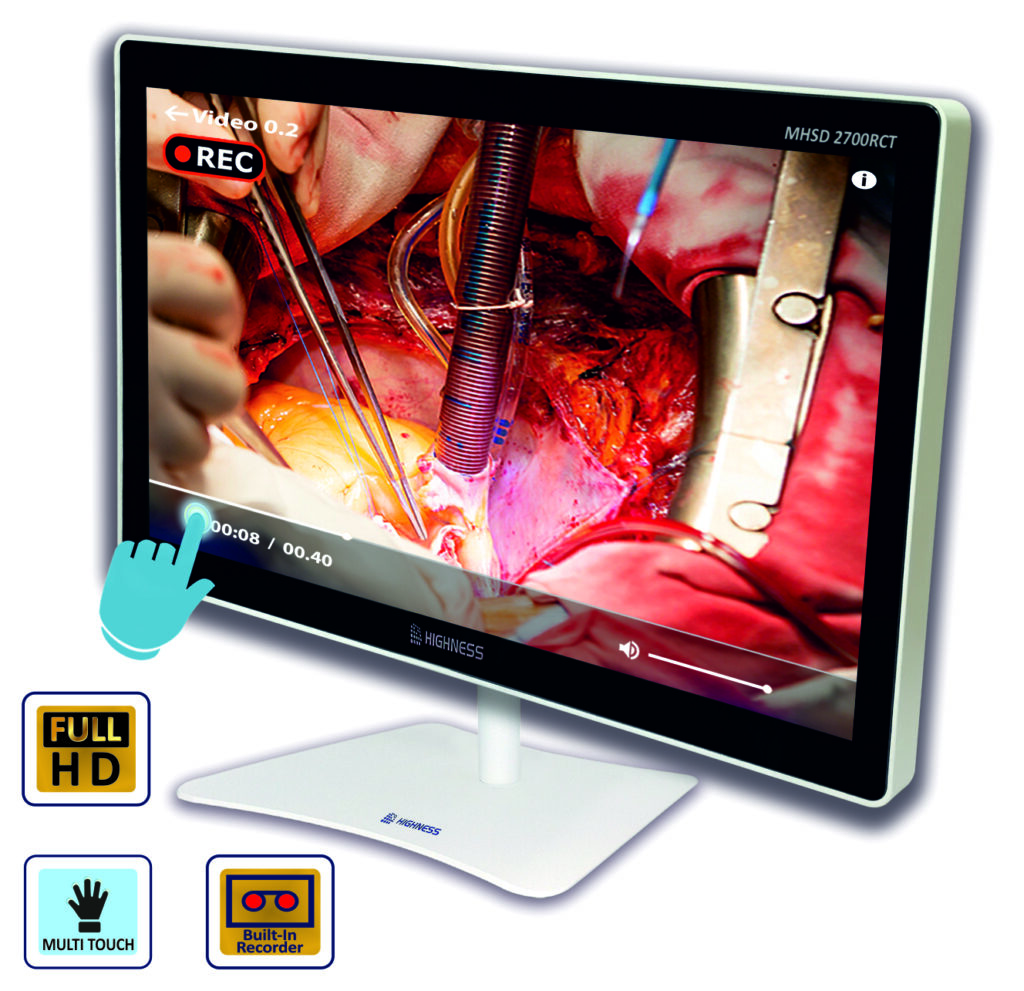

MHSD-2700RCT

Screen Technology

TFT AM LCD

Active Screen Size (Diagonal)

27“

Active Screen Size (H x V)

597.6 x 336.15 mm

Aspect Ratio

16:9

Resolution

1920 x 1080

Pixel Pitch

311.25 x 311.25 µm

Viewing Angle (H, V)

178°, 178°

Maximum Luminance

1000 cd/m²

Contrast Ratio

3000:1

Color

16.7 Million

Response Time (Tr + Tf )

20 ms

Video Inputs Signals

HDMI

Interface Port

HDMI

Video Outputs Signals

HDMI / VGA

Recording System

In-Built, Fully Integrated with Monitor

1TB Storage (Expandable to 2TB)

Simultaneous Recording & Video Display

Other Features –

Recording Start & Pause Button

Screenshot Button

USB for Copying Recorded Videos

Ethernet for Connectivity with Hospital / Clinic Network

Optional Features –

Wi-Fi, Bluetooth (Optional)

Output Signal for Connecting to Slave / Passive Monitor

Built in Operating System

Windows 10 (Pre-installed), Recording Software

Touch Screen Type

Multi-Point Projected Touch Screen

Power Requirements

DC 24V (6.67A)

Power Consumption

TBA

Operating Temperature

0 to +50°C

Storage Temperature

-20 to +60°C

Relative Humidity

10% to 90% (Non-Condensing)

Backlight Life

30,000 hours

Housing Color

White

Housing Material

Metal

Weight

TBA

Mounting Standard

VESA (100 mm)
