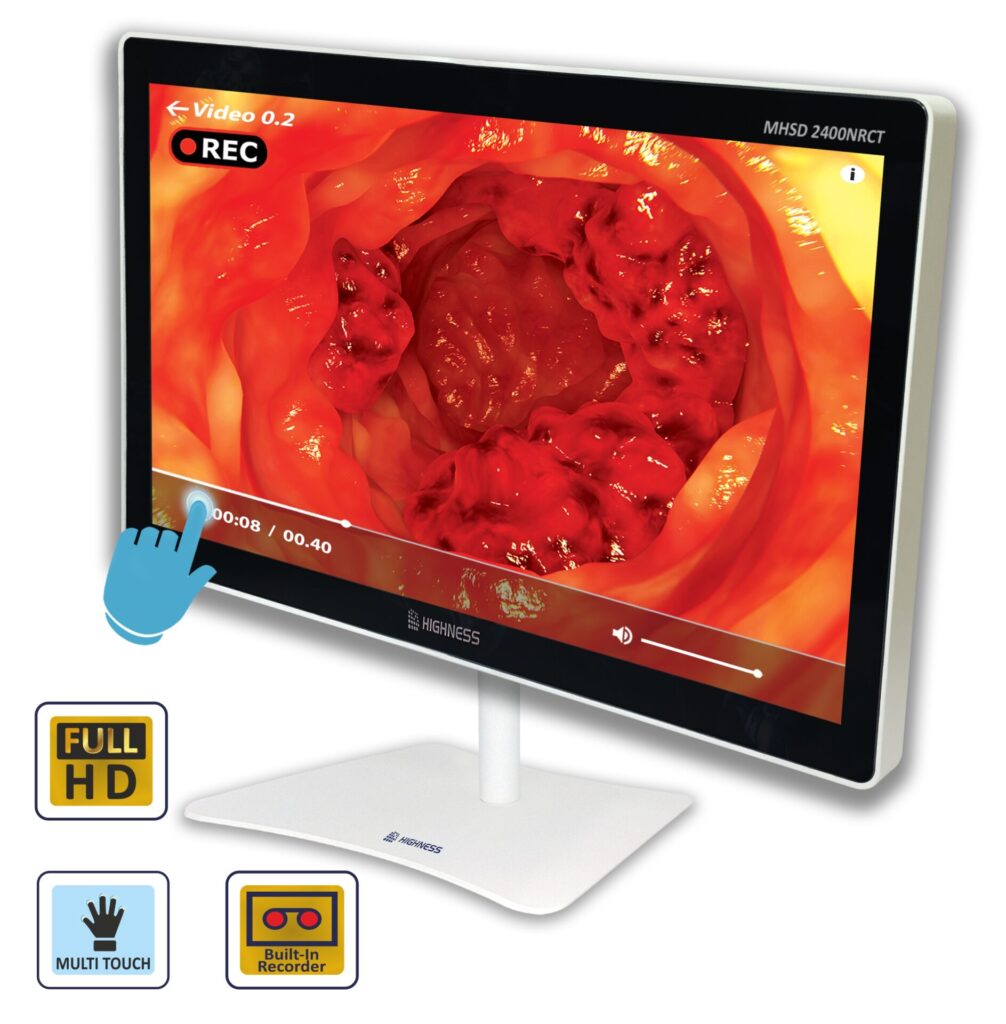

24" Built-In Recorder MHSD-2400NRCT
|
Screen Technology |
TFT AM LCD |
|
Active Screen Size (Diagonal) |
24″ |
|
Active Screen Size (H x V) |
527.04 x 296.46 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
1920 x 1080 |
|
Pixel Pitch |
0.274.5 x 0.274.5 um |
|
Viewing Angle (H,V) |
178°, 178° |
|
Maximum Luminance |
300 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Color |
16.7 Million |
|
Response Time (Tr + Tf ) |
20 ms |
|
Video Inputs Signals |
HDMI |
|
Interface Port |
Digital input: HDMI |
|
|
|
|
Video Outputs Signals |
Digital output: HDMI |
|
|
Analog output: VGA (Optional) |
|
Recording System |
In-Built, fully integrated with Monitor |
|
1TB storage (expandable to 2TB) |
|
|
Simultaneous Recording & Video Display |
|
|
Other Features- |
|
|
Recording Start & Pause Button |
|
|
Screenshot Button |
|
|
USB for copying recorded videos |
|
|
Ethernet for connectivity with Hospital / clinic network |
|
|
Optional Features- |
|
|
Wi-Fi, Bluetooth |
|
|
Output Signal for connecting to slave/passive monitor |
|
|
Power Requirements (Nominal) |
DC 12V (5A) |
|
Power Consumption (Nominal) |
60W |
|
Power Saving |
EPA, VESA Standard |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (Non Condensing) |
|
Housing Color |
White |
|
Housing Material |
Metal |
|
Mounting Standard |
VESA (100 mm) |
