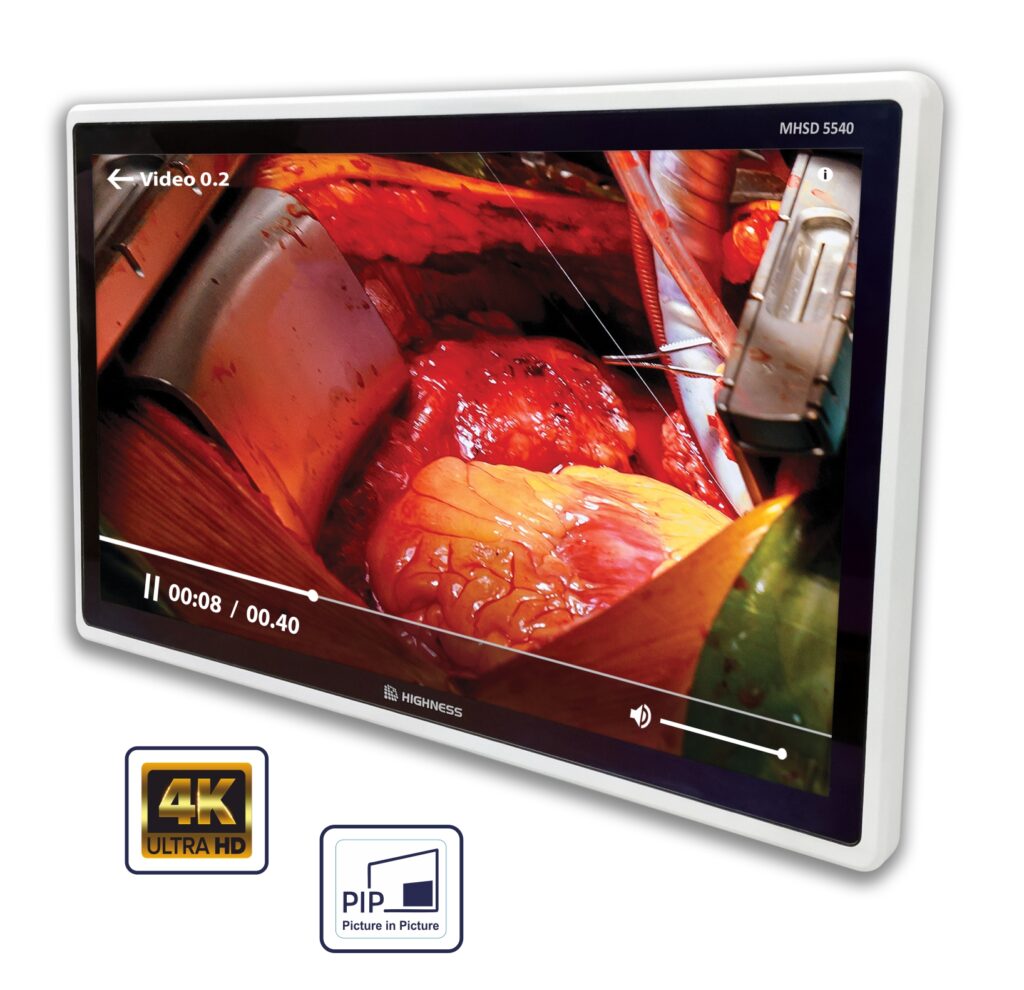

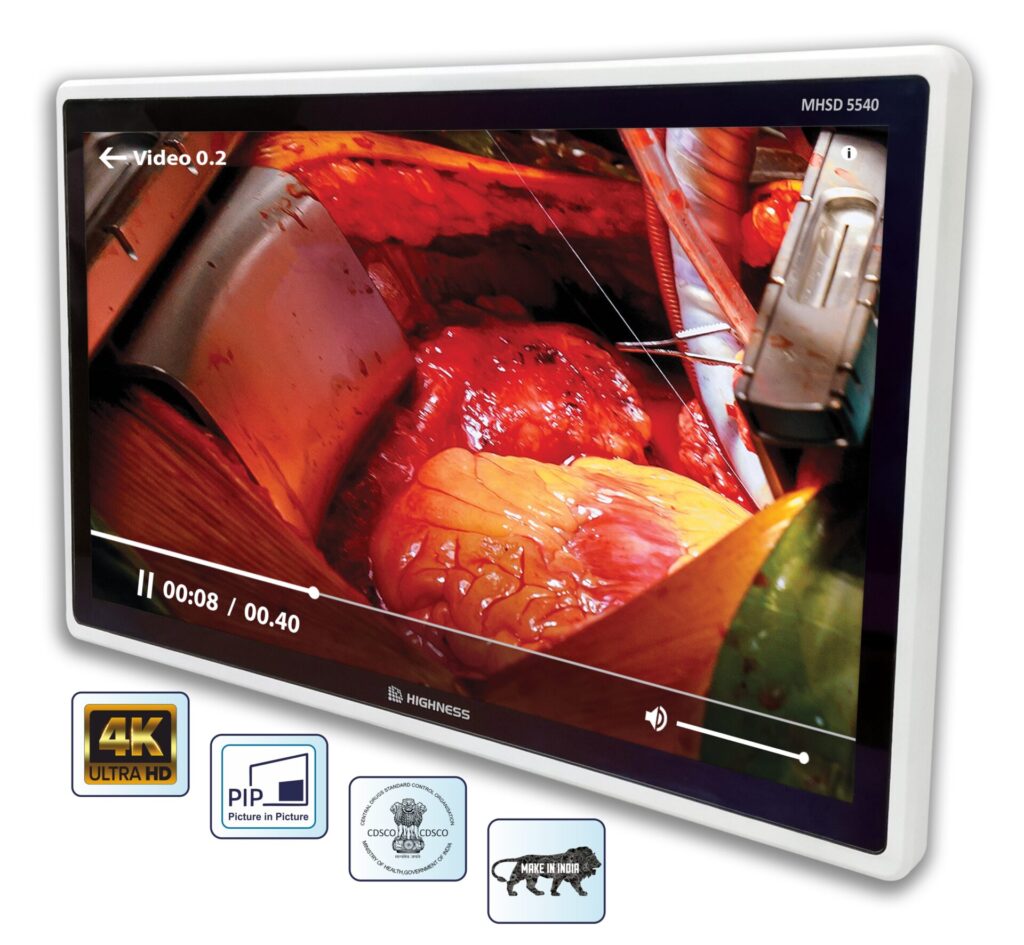

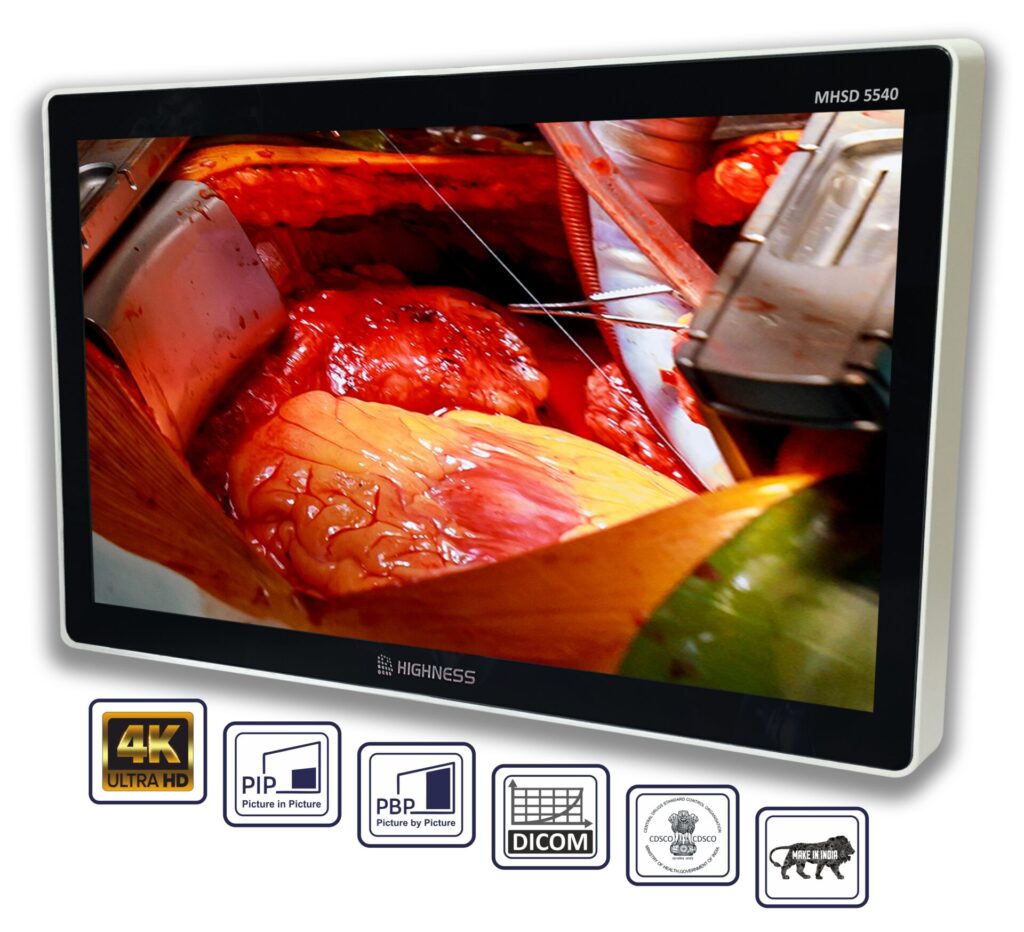

MHSD-5540

Screen Technology

TFT AM LCD

Active Screen Size (Diagonal)

55“

Active Screen Size (H x V)

1233.4 x 706.8 mm

Aspect Ratio

16:9

Resolution

3840 x 2160

Pixel Pitch (H x V)

0.315 x 0.315 mm

Viewing Angle (H, V)

178°, 178°

Maximum Luminance

700 cd/m²

Contrast Ratio

1200:1

Color

1.07 Billon

Response Time (Tr + Tf )

10 ms

Video Inputs Signals

2x HDMI, 2x DP

Video Outputs Signals

DP

Other Mode

PIP/ PBP (L/R, Top/Bottom)/ 4P(4Windows)

Power Requirements

DC 24V (6.67A)

Power Consumption

160W Max

Power Saving

EPA, VESA Standard

Operating Temperature

0 to +50°C

Storage Temperature

-20 to +60°C

Relative Humidity

10% to 90% (Non Condensing)

Housing Color

White

Housing Material

Metal

Mounting Standard

Wall Mount
