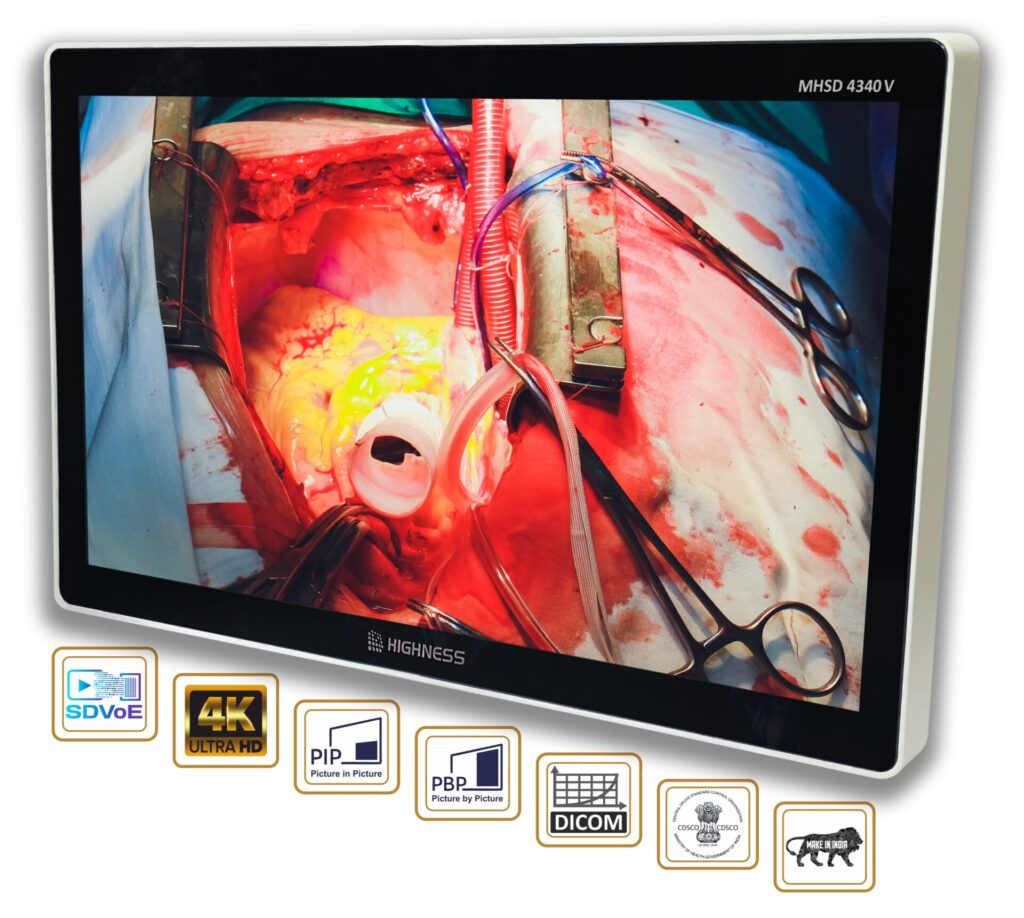

43" SDVoE 4K MHSD-4340V
|
Screen Technology |
TFT AM LCD |
|
Active Screen Size (Diagonal) |
43″ |
|
Active Screen Size (H x V) |
941.184 x 529.416 mm |
|
Aspect Ratio |
16:9 |
|
Resolution |
3840 x 2160 |
|
Pixel Pitch |
0.2451 mm |
|
Viewing Angle (H, V) |
178°, 178° |
|
Maximum Luminance |
650 cd/m² |
|
Contrast Ratio |
1000:1 |
|
Color |
1.07 billion |
|
Response Time (Tr + Tf ) |
12 ms |
|
Video Inputs Signals |
2x HDMI, 2x DP |
|
Video Output Signal |
HDMI |
|
PIP Function |
PIP/ PBP (L/R, Top/Bottom)/ 4P(4Windows) |
|
Software Defined Video over Ethernet (SDVoE) |
1x SFP+ (10G Fiber) Uncompressed 4K/8K video |
|
1x Ethernet (1G Copper) |
|
|
Power Requirements |
DC 24V (6.67A) |
|
Power Consumption |
160W |
|
Operating Temperature |
0 to +50°C |
|
Storage Temperature |
-20 to +60°C |
|
Relative Humidity |
10% to 90% (non-Condensing) |
|
Other Feature |
Round Corners for Ergonomics Design |
|
Surface Treatment |
Toughened Ultra Clear Glass 3.5mm |
|
AR & Antimicrobial Coated |
|
|
IP56 Front |
|
|
Backlight Life |
50,000 hours |
|
Housing Color |
White |
|
Housing Material |
Metal |
|
Weight |
TBA |
|
Mounting Standard |
Wall Mount |
