mhsd3200rc

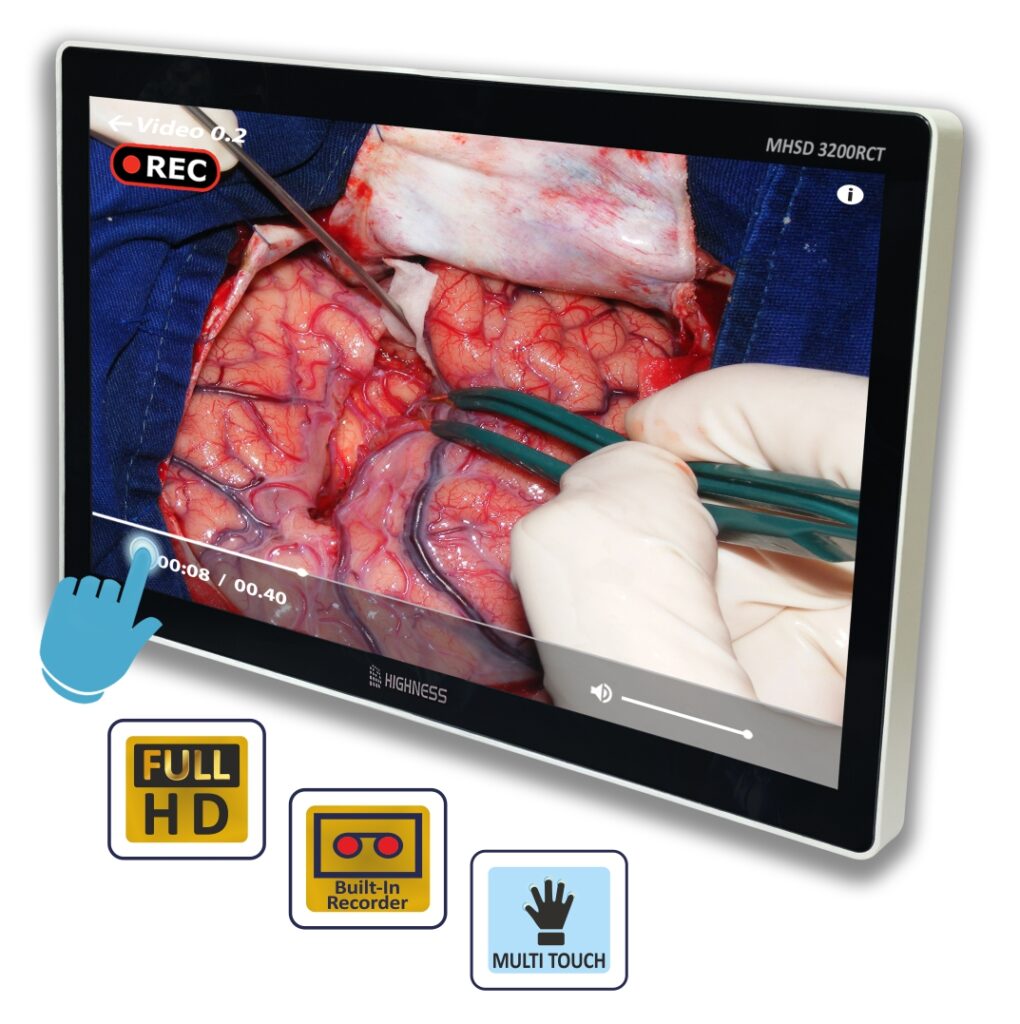

32" Built-In Recorder MHSD-3200RC

Screen Technology

TFT AM LCD

Active Screen Size (Diagonal)

32″

Active Screen Size (H x V)

698.4 (H) x 392.85 mm

Aspect Ratio

16:09

Resolution

1920 x 1080

Pixel Pitch

0.3637 mm

Viewing Angle (H,V)

178°, 178°

Maximum Luminance

500 cd/m²

Contrast Ratio

3000:01:00

Color

16.7 Million

Response Time (Tr + Tf )

10 ms

Video Inputs Signals

SDI/ HDMI/ DVI & VGA

(Please select one from above option)

Interface Port

Digital input:- SDI, HDMI Port, DVI

Analog input:- 15 Pin D-Sub

Video Outputs Signals

Digital output: HDMI

Analog output: VGA

Recording System

In-Built, fully integrated with Monitor

1TB storage (expandable to 2TB)

Simultaneous Recording & Video
Display

Other Features-

Recording Start & Pause Button

Screenshot Button

USB for copying recorded videos

Ethernet for connectivity with Hospital
/ clinic network

Optional Features-

Wi-Fi, Bluetooth

Output Signal for connecting to
slave/passive monitor

Power Requirements (Nominal)

AC 100-240V

Power Consumption (Nominal)

79W Max

Power Saving

EPA, VESA Standard

Operating Temperature

0 to +50°C

Storage Temperature

-20 to +60°C

Relative Humidity

10% to 90% (Non-Condensing)

Housing Color

White

Housing Material

Metal

Mounting Standard

Wall Mount & VESA (100 mm)
